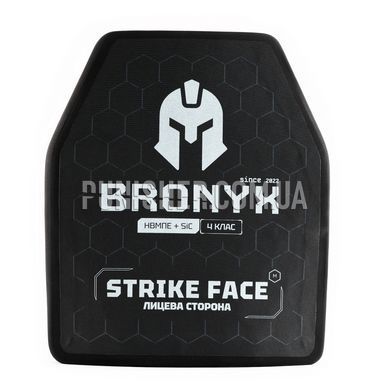

CAP4 Ceramic Armor Plate — Maximum Protection Without Mobility Compromise
The CAP4 armor plate, 4th protection class according to DSTU 8782:2018, combines reliable ballistic performance with moderate weight. It is designed for military personnel, law enforcement, and security specialists who require full freedom of movement even during extended wear.
The plate effectively stops high-velocity rounds while maintaining comfort and ergonomic design needed for active field operations.
Ergonomic Design
Shooter’s Cut, 3D Multi-Curved — curvature in two planes.
The anatomical shape follows the body’s contours, ensuring stable fit and even weight distribution. The design does not interfere with aiming or shoulder movement, which is essential during prolonged wear under tactical gear.
Ballistic Performance
CAP4 is rated to stop:
-
5.45×39 mm PP (7N10) — 910 ± 15 m/s
-
7.62×54 mm LPS (57-N-323s) — 850 ± 15 m/s
Maximum backface deformation (BFD):
-
0 mm — for 5.45×39 mm PP
-
up to 24 mm — for 7.62×54 mm LPS
These results meet 4th class standards and provide controlled energy transfer to the body.
Multi-Layer Construction
-
Outer layer: Oxford fabric with water-repellent coating, protects against moisture, dust, and abrasion.
-
Shock absorption layer: foamed polyethylene absorbs impact and adds structural rigidity.
-
Strike element: SiC ceramic (silicon carbide) hot-pressed to break the bullet and withstand high temperatures.
-
Energy-dispersing layer: UHMWPE polymer distributes impact and reduces overall weight.
-
Inner damper: foamed polyethylene for added comfort and reduced backface deformation.
Key Advantages
-
4th protection class with balanced weight
-
Resistant to moisture, dust, and temperature changes
-
3D anatomical shape for optimal body fit
-
Compatible with most modern plate carriers
-
Optimal balance of strength and mobility
Technical Specifications (Size M)
-
Protection class: 4 (DSTU 8782:2018)
-
Shape: Shooter’s Cut
-
Curvature: 3D, two planes
-
Size: 25 × 30 cm
-
Protection area: 7.1 dm²
-
Thickness: 26–27 mm
-
Weight (per piece): 2.23 kg
-
Recommended chest size: up to 110 ± 5 cm
Important
If the plate carrier does not have a built-in damping layer, an additional padding insert is recommended. This reduces backface deformation when hit by high-energy rounds.
Manufactured in Ukraine at own production facilities.
Price is for 1 piece.
