U-WIN BASE Groin Protector Kit with NIJ Level 2 Equivalent Ballistic Insert
The U-WIN BASE kit is designed to enhance protection of the lower abdomen and groin area while maintaining a high level of mobility. The set includes a tactical groin protector and a ballistic insert specifically shaped and sized for optimal compatibility.
Groin Protector Design

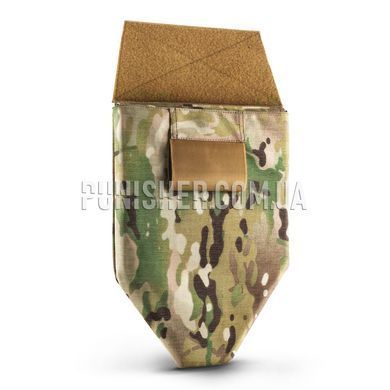

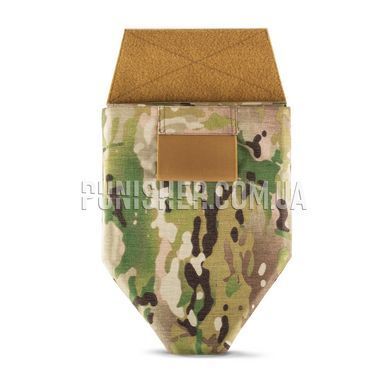

The U-WIN BASE groin protector attaches to the front flap of a plate carrier using a wide Velcro panel, providing secure retention and quick installation. Its design maximizes the protected area while allowing unrestricted movement during walking, running, vehicle operations, and tactical activities.

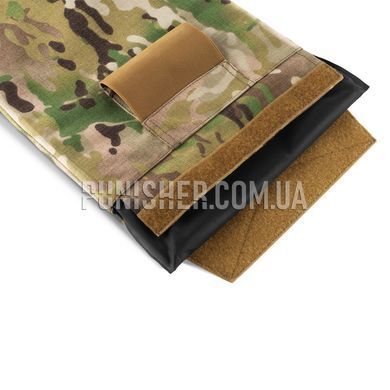

The internal compartment is designed to accommodate a dedicated ballistic insert with a protective area of 6.2 dm². An elastic tourniquet holder is located on the upper section of the pouch, allowing immediate access to critical medical equipment when needed.
A drainage grommet at the bottom of the pouch helps remove water and condensation, keeping the interior dry even during prolonged use in demanding weather conditions.
If required, the system can be supplemented with an administrative or utility pouch from the U-WIN BASE series for carrying additional gear.
Ballistic Insert

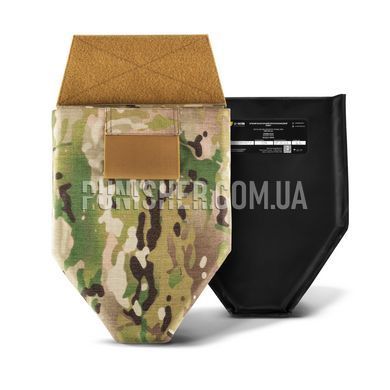

The kit includes a soft ballistic insert made from Ultra-High-Molecular-Weight Polyethylene (UHMWPE), consisting of 55 layers of ballistic material. The insert is sealed inside a waterproof protective cover that shields it from moisture and environmental exposure.
Its specially designed shape provides extensive coverage while maintaining comfort during kneeling, squatting, and other dynamic movements.
In terms of penetration resistance, the insert meets the requirements of Protection Class 2 according to DSTU 8782:2018 and is capable of stopping common handgun rounds. Additionally, testing conducted in accordance with NATO STANAG 2920 confirmed a fragmentation resistance rating of V50 = 723 m/s.
Features
- Complete kit including groin protector and ballistic insert.
- Protective area of 6.2 dm².
- Wide Velcro attachment system for plate carriers.
- Ergonomic design that preserves mobility.
- Elastic tourniquet retention band.
- Drainage eyelet for moisture evacuation.
- Waterproof sealed ballistic insert cover.
- 55 layers of UHMWPE ballistic material.
- Meets Protection Class 2 requirements under DSTU 8782:2018.
- Verified fragmentation resistance rating V50 = 723 m/s.
Specifications
- Type: Groin protector with ballistic protection
- Series: BASE
- Outer material: Cordura® 1000D
- Ballistic material: UHMWPE
- Protection level: Class 2
- Protective area: 6.2 dm²
- Dimensions: 32 × 23 cm
- Attachment system: Velcro
- Weight: 480 g
- Country of manufacture: Ukraine
The U-WIN BASE kit is a practical addition to modern body armor systems, providing enhanced protection for vulnerable areas without significantly increasing equipment weight while maintaining excellent freedom of movement.
