Reason for markdown: cracked housing near the wire, does not affect functionality.

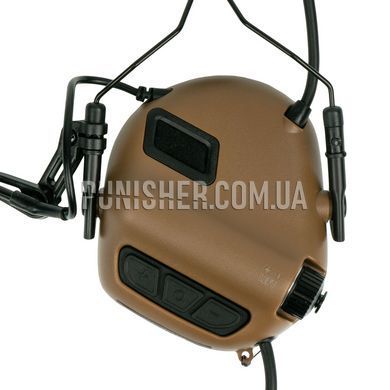

Earmor M32H Mark 3 active headset with detachable microphone, adapters for mounting on ARC helmet rails and TP-120 U-174 plug for PTT button connection. Has multiple levels to adapt to different listening environment scenarios, protecting hearing and improving situational awareness.
The M32H headset provides hearing protection in loud impulsive noise environments such as firearms areas. Headphone microphones enhance user awareness by allowing them to hear sounds from their surroundings and protect their hearing. Harmful sounds are limited to a safe level of 82 dB, while quiet sounds are amplified. The response time to loud impulse sounds is 1 ms.
The detachable microphone can be used on either the right or left side.
The EMI/RFI filter inhibits the interference generated by electronic devices, and improves RF immunity for the EMI environment.
Ergonomic cups with soft ear cushions provide a comfortable fit and seal.
The battery compartments are IP67 waterproof and have hinges to prevent the cover from being lost.
Battery saving function — automatic shutdown after 4 hours.
Built-in TP-120 U-174 (NATO STD) plug to connect to PTT button.
Attention! The military connector is compatible with Earmor PTT or TCI/Nexus PTT. NOT suitable for PTT Element or Z-Tactical.

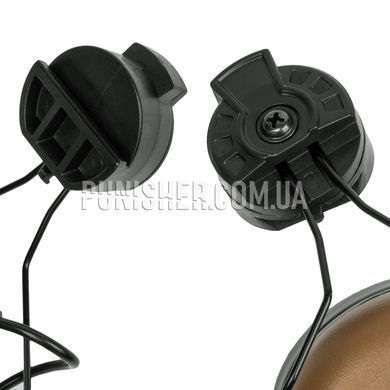

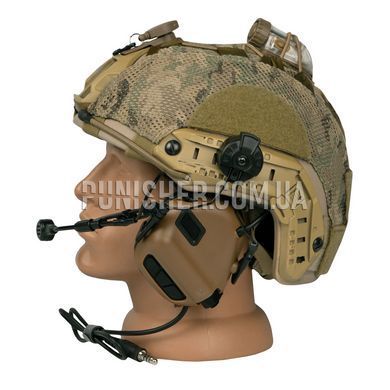

Supplied with a set of rail adapters for FAST helmets. The adapters can be rotated to stow the earbuds when not in use.
Earmor Mark 3 and Mod 3 series Differences
1. The Mark 3 series is the military version. It is suitable for operational tasks and tactical exercises. The MOD series is the standard version, suitable for firearms training and tactical exercises.
2. The MARK series has improved materials of most parts, making it more practical and reliable.
3. Improved interference protection, chip settings are more suitable for military standard radios. These advantages make MARK series headsets quite effective on the battlefield.
| | MOD 3 | Mark 3 |
| Shell Material | ABS | ABS |
| Battery Compartment Lid Material | ABS | Metal |
| Cushion material | PVC | Silicone |
| Waterproof Level | IPX5 | IP67 |
| Number of volume control levels | 3 | 5 |
| Button location | Right cup | Left cup |
| Detachable microphone | Protects against wind noise | Dynamic — amplifies people's voices |
| Bracket change | Requires tools | Knock-down structure (modular design) for quick change of wearing method |

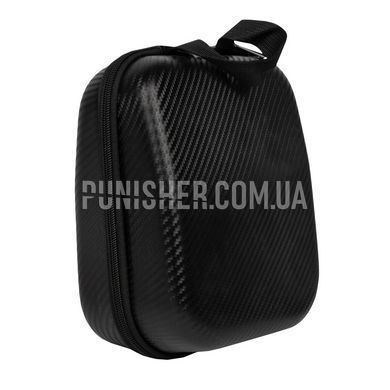

Scope of delivery: Earmor M32H Mark 3 headset with detachable microphone and built-in military standard NATO 7.0 plug for PTT button, FAST helmet rail adapter kit, hard transport case, English manual.
Characteristics
Noise Reduction Level NRR: 22dB
Noise attenuation above: 82 dB
Shielding system: EMI/RFI
Response time: 0.01s
Waterproof level: IP67
Plug: TP-120 U-174 (NATO STD)
Power supply: 2 x AAA batteries (not included)
Battery life: ~350 hours
Compliance: CE/RoSH/ANSI S3.19-1974/MIL-STD-810G
Weight (without batteries): 13.6 oz
