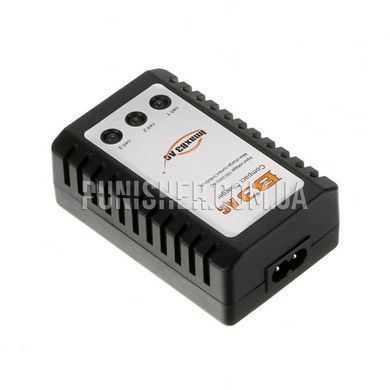

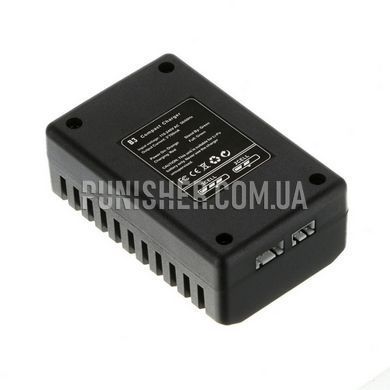

The IMAX B3 Pro is a simple and reliable balancing charger for 2S (7.4V) and 3S (11.1V) Li-Po and Li-ion batteries featuring a JST-XH connector. Thanks to its built-in switching power supply, it connects directly to a 100–240 V mains supply and does not require an additional adapter.
The charging process is controlled by a microprocessor, which ensures the correct balancing of each battery cell. For ease of use, there are three two-color indicators:
✅red — battery is charging;
✅green — charging is complete.
IMAX B3 Pro is a compact solution for owners of drones, quadcopters, radio-controlled airplanes, helicopters, cars, boats, and airsoft drives that use Li-Po or Li-ion batteries.
Specifications
Input voltage: AC 100-240V
Output voltage: 7.4V or 11.1V ± 1%
Output current: 800 mA
Charging connector: JST-XH (balancing)
Dimensions: 90 x 55 x 35 mm
Color charging indicator: +
Short circuit protection: +
Weight: 65 g
ATTENTION!
1. Use ONLY for Li-ion and Li-Po batteries.
2. Do not charge more than one battery at a time.
3. Batteries may become hot during charging — please exercise caution.
4. Do not leave the battery connected after it is fully charged.
5. Use in dry and well-ventilated areas, within a temperature range of +10...+30 °C.
6. Do not use for Ni-Cd, Ni-MH, or LiFePO4 batteries.
7. The charger is NOT designed for continuous charging of several batteries one after another, as this may damage it. Wait at least 2 hours before charging each subsequent battery.
Package contents: IMAX B3 PRO charger, cable for connecting the device to a 220V power supply (EU), instructions in English.
